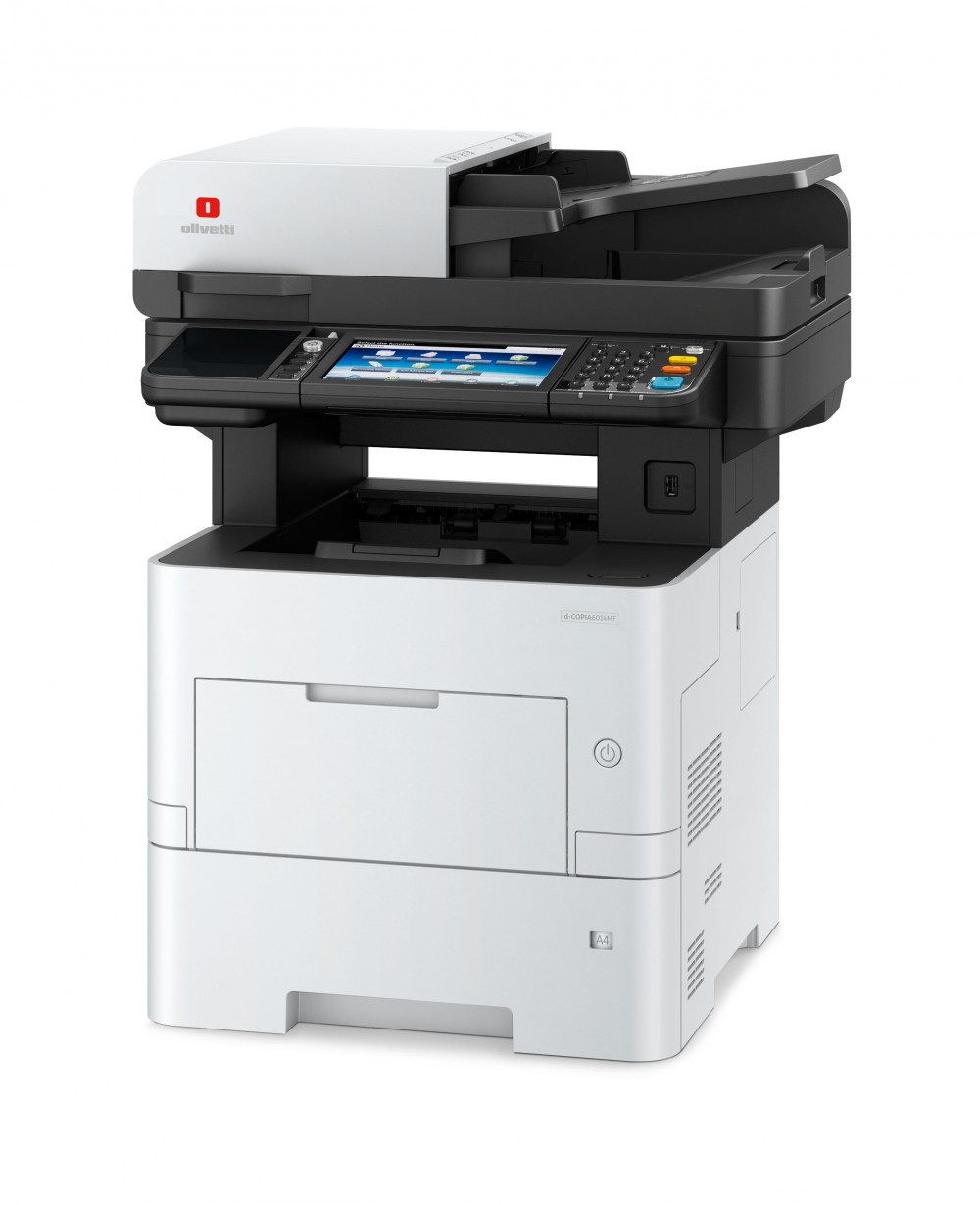

Olivetti d-Copia 4513MFplus

Artnr: Olivetti d-Copia 4513MFplus Pris: 0 kr

Skriver upp till 45 sidor per minut.
7" Touch färg skärm
Airprint kompatibel.
Sökbar PDF (tillbehör)
Pappersmagasin upp till 2600st A4.

  • Mer Information

    TECHNICAL SPECIFICATIONS



    GENERAL

    Type: Desktop Printer/Scanner/Copier; d-Copia 4514MF plus
    Technology: Mono Laser
    Print/copy speed (per minute): Up to 45 ppm A4 Print/copy speed in duplex (per minute): Up to 22.5 ppm A4

    Processor: ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz
    Resolution: 1,200 x 1,200 dpi (print), 600 x 600 dpi (scan/copy)

    Operator panel: 5-row backlit LCD Display with Speakers for job notifications
    Warm-up time: Approx 16 secs or less
    Time for first print: Approx 5.9 secs or less
    Time for first copy from DP: Approx 7 secs or less Time for first copy from Platen: Approx 7 secs or less Memory: Standard 1GB, Max 3GB + SSD 128GB Standard interfaces: USB interface connector: 1 (Hi-Speed USB); Network interface: 1 (10 Base-T/100 Base-TX/1000 Base-T); Optional interface (optional): 1 (for IB-50 /IB-51); Wireless LAN (optional): 1 (for IB-36)

    Embedded counter: 100 dept codes
    Duty Cycle (pages/month): 13000
    Weight: Approx 22.3 Kg Dimensions(WxDxH):475mmx476mmx575mm Power supply: AC 220 V ~ 240 V, 50/60 Hz

    Energy consumption in print/copy mode: 630 W/ 652 W
    Energy consumption in ready mode: 50 W Energy consumption in rest mode: 0.5 W

    Noise levels (as defined in ISO 7779/ISO 9296):

    Printing: 54 dB(A) LpA Standby: 30 dB(A) LpA TEC (kWh/wk): 2.24

    Security standards: GS, TÜV, CE. This product has been manufactured by a company operating in conformity with ISO 9001 Quality Standards and ISO 14001 Environmental Directives; RoHs compatibility.

    PAPER HANDLING

    Paper input capacity:
    Universal bypass:
    100-sheet, 60 – 220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Custom (70 × 148 mm - 216
    × 356 mm)
    Standard drawer: 500-sheet, 60 – 120 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Custom (140 × 148 mm - 216 × 356 mm);
    Optional paper drawer, PF-3110 500-sheet, 60 – 120 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Custom (92
    × 162 mm - 216 × 356 mm); (max 4 additional drawers) Paper input capacity, maximum: 2600-sheet A4 (with additional drawers)
    Automatic document feeder in duplex: 75-sheet RADF 50-120 g/m2, A4, A5, B5, Letter, Legal, Custom (105×148mm–216×356mm)
    Paper output capacity: Max 250 sheets face-down Standard duplex functionality: 60-120 g/m2, A4, A5, B5, Letter, Legal

    PRINT FUNCTIONS

    Print speed per minute: Up to 45 ppm A4 Emulations: PCL 6 (5c/XL), KPDL 3 (PostScript 3-compatible), PDF Direct Print, XPS Direct Print, AES support, TIFF/JPEG Direct Print Support, Open XPS, Line Printer, IBM Proprinter X24E, Epson LQ-850 Operating Systems: All current Windows operating systems, Mac OS X Version 10.8 or later, UNIX, LINUX Barcodes/Fonts: 93 scalable fonts (PCL6/KPDL3), 8 fonts (Windows), 1 Bitmap font, 45 one-dimensional barcode types and 1 two-dimensional barcode type (PDF-417)
    Mobile printing support: Olivetti Mobile Print for iOS and Android, AirPrint, Direct Wi-Fi (optional), Google Cloud Print
    Print functions: PDF direct printing, IPP printing, E-mail printing, WSD printing, SSL-protected printing, IPsec, SNMPv3

    COPY FUNCTIONS

    Copy speed, maximum: 45 ppm A4 Reduction/enlargement ratios: 7 Reductions/5 Enlargements
    Originals format, maximum: A4

    Continuous copying: 1 – 999
    Zoom: 25 – 400% in steps of 1%
    Image adjustment: Text + Photo, Photo, Text, Map, Printed document
    Other functions: Electronic sort, ID Card copy, 2 in 1, 4 in 1, Auto drawer selection, Blank page skip

    SCAN FUNCTIONS

    Functionalities: Scan to email (SMTP) Scan to FTP over SSL, Scan to SMB, Scan to USB Host, Scan to Twain Box (network), WSD, WIA
    Scan speed: Up to 60 ipm (A4, 300 dpi, mono ), 40 ipm (A4, 300 dpi, colour); duplex: 26 ipm (A4, 300 dpi mono), 17 ipm (A4, 300 dpi, colour)

    Scan resolution: 600 dpi, 400 dpi, 300 dpi, 200 dpi, 256 grey scales
    Scan format, maximum: A4
    Originals recognition: Text, Photo, Text+Photo, Light text/Fine line, OCR-optimised text

    Image format: TIFF/JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A- 1a/b, PDF/A-2a/b/u, encrypted PDF, high compression PDF
    Compression method: MMR/JPEG

    Other features: Banner scan, Colour scan, Integrated address book, Active Directory support, Encrypted data transfer, Simultaneous multi send (e-mail, fax, FTP/SMB folder, print), Blank page skip

    FAX FUNCTIONS (d-Copia 4514MF only)

    Compatibility: ITU-T Super G3 Modem speed: Max. 33.6 kbps Transmission speed: Under 3 seconds Scan speed: 2 secs/page or less

    Fax resolution: Normal 200 x 100 dpi, Fine 200x200 dpi, Superfine 200 x 400 dpi, Ultra-fine 400 x 400 dpi Originals format, max: A4, Legal, Banner (915 mm max)

    Compression method: JBIG, MMR, MR, MH Address book: 200 entries
    Multiple transmission: Up to 100 destinations Reception memory: 256 pages or more

    Other features: Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

    CONSUMABLES

    Average toner life time is compliant with ISO/IEC 19752 standard
    Black toner cartridge (B1228): Up to 12,500 A4 pages (toner in supply up to 6,000 pages)

    Maintenance kit (B1287): Up to 300,000 pages Sheet Feeder Maintenance kit (B1144): Up to 200,000 pages

    OPTIONS

    Paper drawer (B3637): PF-3110, 500-sheet (max 4 optional drawers)
    CB-365 L (B3687): Cabinet with paper compartment (low) 38 cm x 41 cm x 25 cm

    CB-360 H (B3686): Cabinet with paper compartment (tall)38cmx41cmx51cm
    Additional memory: DDR3; MD3-1024 1 GB; MDDR3- 2GB

    HD-6 (B4369): SSD 32GB Hard disk for easier document management
    HD-7 (B4844): SSD 128 GB Hard disk for easier document management

    Data Security Kit(E) (B5679): d-Copia 4514MF is also compliant with ISO 15408 (Common Criteria) supporting EAL2 security level
    IB-36 (B3406): Wireless network interface (802.11b/g/n) with Wi-Fi Direct

    IB-50 (B4805): Gigabit Ethernet 10Base-T/100Base- TX/1000Base-T
    IB-51 (B4933): Wireless network interface (802.11b/g/n)

    UG-33 (B8403): ThinPrint support
    USB IC-Card Reader + Card Authentication kit (B): Support for various types of authentication/ card / badge reader
    Card Reader Holder 10 (B4845): Plastic holder for incorporating badge reader on control panel
